Chilling shields, freezer shields, gel-packs and dry ice are reusable passive cooling elements that can be easily attached to or placed directly in the alvobox® to secure the cooling of your deliveries – for the final mile solution.

THE COOLING ELEMENTS
for chilled & frozen products

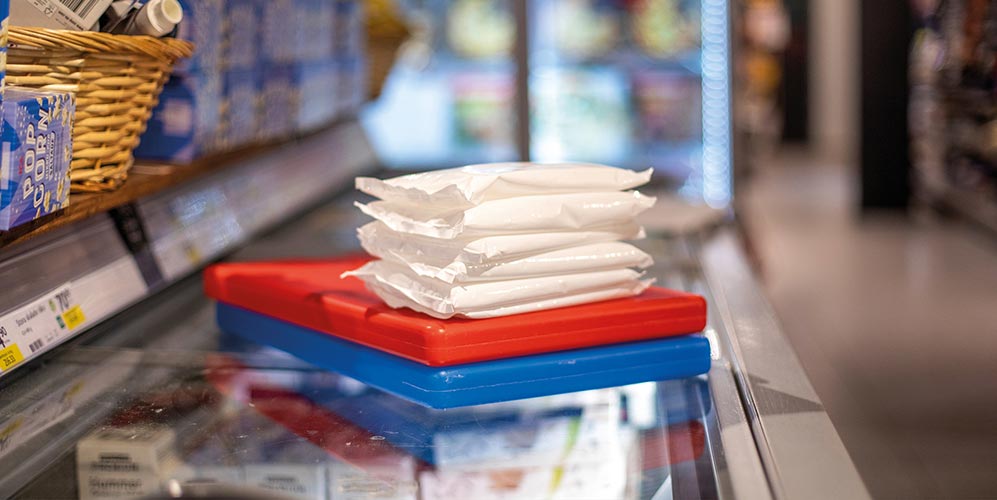

Our reusable chilling- or freezer shields are easily attached to the unique lid of the alvobox® – but there are a wide range of passive cooling elements that can be used as a complement to secure the cooling in the alvobox® and ifoodbag®. We offer the right product for each case: chilling or freezer shields, gel-packs, ice-packs, dry ice or Phase Change Materials (PCM).

RED FOR CHILLING

The red passive cooling units are shilling shields used to secure the cooling in the alvobox®. Easily attached to the lid of the alvobox® the cold chain keeps intact for final mile deliveries.

Contact us

BLUE FOR FREEZE

The blue passive cooling units are freezer shields used when delivering frozen products. Easily attached to the lid of the alvobox® the cold chain keeps intact for final mile deliveries.

Contact us

GEL-PACK, ICE-PACK, DRY ICE

A wide range of passive cooling elements can be used as a complement to secure the cooling in the alvobox® and
ifoodbag® e.g. gel-packs, ice-packs, dry ice and Phase Change Materials (PCM).

Product info

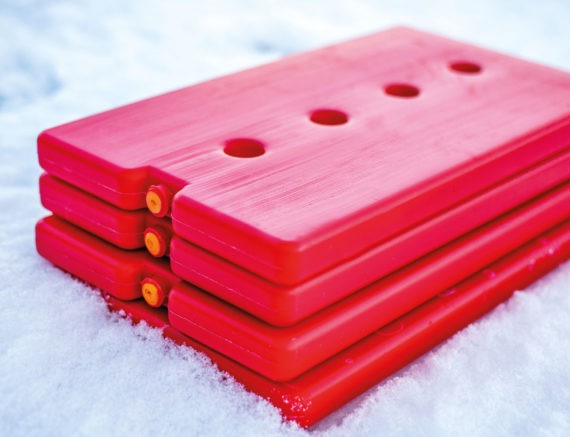

Red chilling shield

The red chilling shield is perfectly sized to be attached to the lid of the alvobox® 52L or 151L. It maintains the goods in the box refrigerated for at least 8 hours in up to 35°C (95°F).

Click to view all features
  • For fresh food, -3°C (27°F)
  • Measurements 480*280*35 mm
  • Weight 4,2 kg. (9,3 lb.)
  • Outer material of age-resistant and impact-resistant HDPE (High Density PolyEtylene)
  • Food-contact safe
  • Manufactured in one piece
  • Filled with non-toxic saltwater, Calcium Chloride, CaCl
  • Can be frozen repeatedly in a rapid freezer or in your cold store

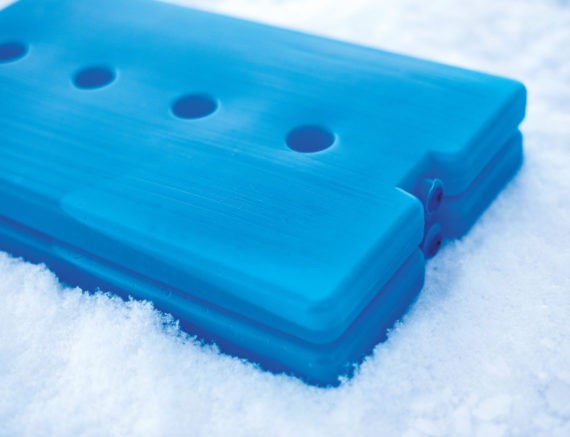

Blue freezer shield

The blue freezer shield is perfectly sized to be attached to the lid of the alvobox® 52L or 151L. It maintains the goods in the box frozen for at least 8 hours in up to 35°C (95°F).

Click to view all features
  • For frozen food -21°C (6°F)
  • Measurements 480*280*35 mm
  • Weight 4.9 kg. (10.8 lb.)
  • Outer material of age-resistant and impact-resistant HDPE (High Density PolyEtylene)
  • Food-contact safe
  • Manufactured in one piece
  • Filled with non-toxic saltwater, Calcium Chloride, CaCl
  • Can be frozen repeatedly in a rapid freezer or in your cold store

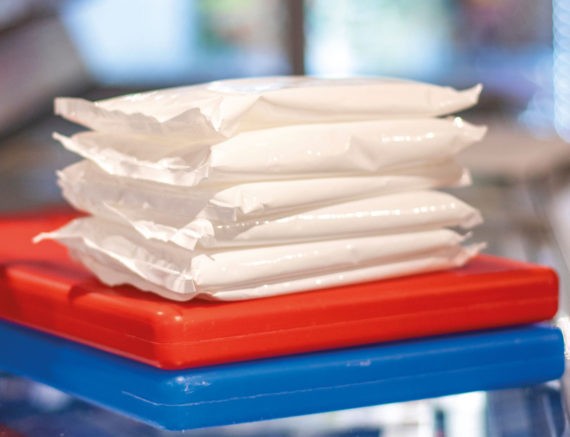

Gel-packs

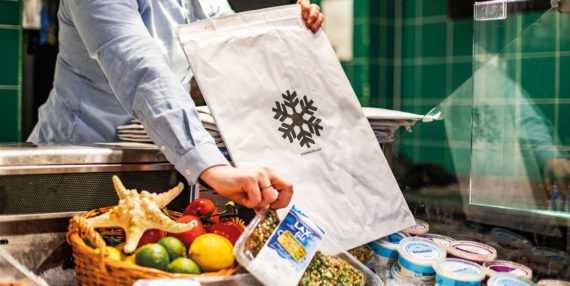

Our cooling elements includes cooling and freezing gel-packs. They are designed to keep your cold chain intact during transport. In combination with, for example, ifoodbag® thermal pouches, one or two gel-packs will keep the content temperature controlled during transportation, ensuring product quality. In warm ambient temperatures as well as in high humidity conditions your products arrive in perfect condition, whether it is chilled or frozen food, medicines, or flowers.

Click to view all features

The ifoodbag® range of protective final mile products provide a secure and easy method of packing temperature sensitive, chilled, or frozen products. Our gel-packs are leakproof polyethylene bags, filled with polymer-based cooling gel. The sealed pouch has a strong performance in both burst strength and durability.

Freezing temperature: -1° C
Melting temperature: +1° C
Specific Heat: 0,44 cal/gm/C°
Latent Heat: 77,5 cal/gm
Energy recycling only
